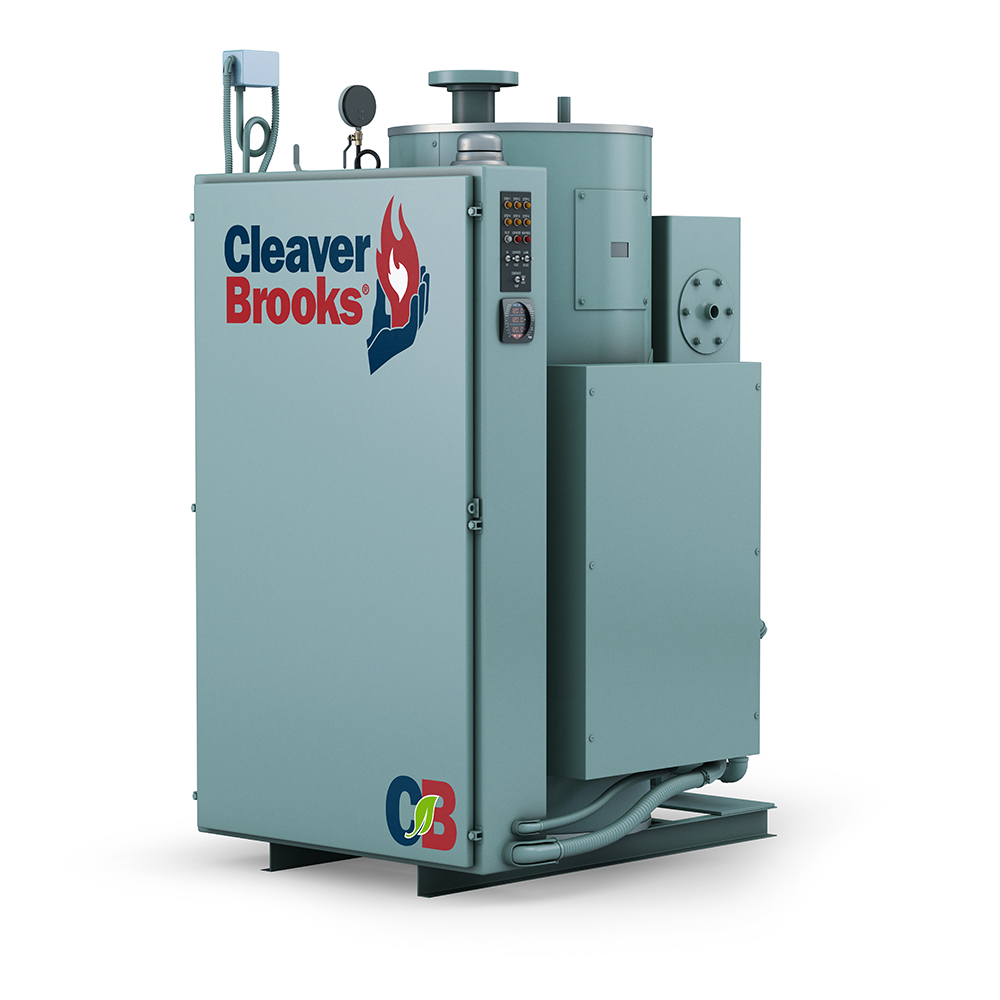

Cleaver-Brooks Model CR Electric Steam Boiler - Tundra

The Cleaver-Brooks Model CR is an immersion-element steam boiler with a vertical, insulated vessel. This boiler is designed for the heavy-duty, continuous demand of commercial and industrial applications. Available in vessel sizes ranging from 12″ to 24″ diameter with an output spanning 12 kW to 563 kW. A typical Model CR boiler system includes operating controls, elements, fuses, contactors, safety valve, instrumentation, condensate-return tank, and feedwater pump.

  • Electric vertical steam boiler with condensate return tank and pump assembly
  • 12 to 563 KW – up to 1,969 lb/hr
  • Up to 600V
  • 15, 150, 200 & 250 psig
  • No site emissions
  • Compact design and smaller footprint
  • Quiet operation with virtually no noise emissions
  • Nearly 100% efficiency at all operating points
  • Ease of maintenance with reduced complexity/number of moving parts
  • All units are fully packaged and ready for installation
